Clean Room HVAC
Complete cleanroom envelope solutions featuring EPS sandwich panels, airtight stainless steel and aluminum doors, and integrated HVAC systems for pharmaceutical, electronics, and medical facilities requiring controlled environments.
Complete Cleanroom Envelope Solutions
Our cleanroom systems serve critical pharmaceutical and medical production facilities including tablet/capsule manufacturing, injectable drug production, vaccine labs, IV fluid production, sterile packaging rooms, and medical device assembly. We provide complete airtight enclosures using lightweight EPS sandwich panels (10-14 kg/m²) with excellent thermal insulation.
Delivering Class 10,000 cleanroom performance with precise temperature control (23-24°C ±1-2°C) and humidity management (45-55% ±5%), our systems feature fully airtight stainless steel and aluminum doors with embedded silicone sealing to maintain pressure differentials essential for pharmaceutical and medical manufacturing.
Successfully deployed across pharmaceuticals, medical device production, and large-scale electronics manufacturing including TV production, refrigerator assembly, mobile phone manufacturing, PCB fabrication, and compressor workshops—with projects spanning up to 20,000 sqm workshop areas.

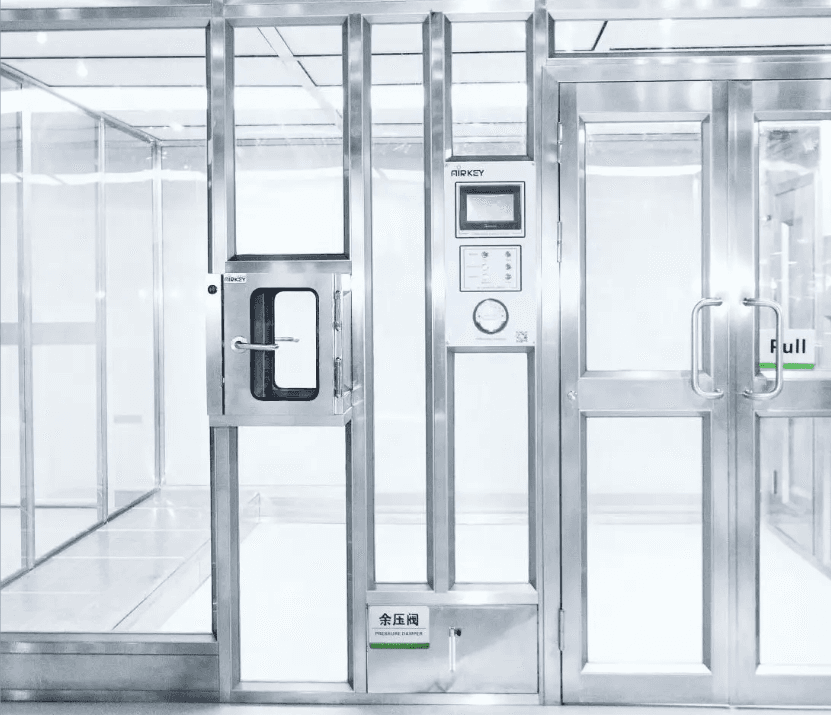

Cleanroom Air Shower with Interlocking Airtight Doors

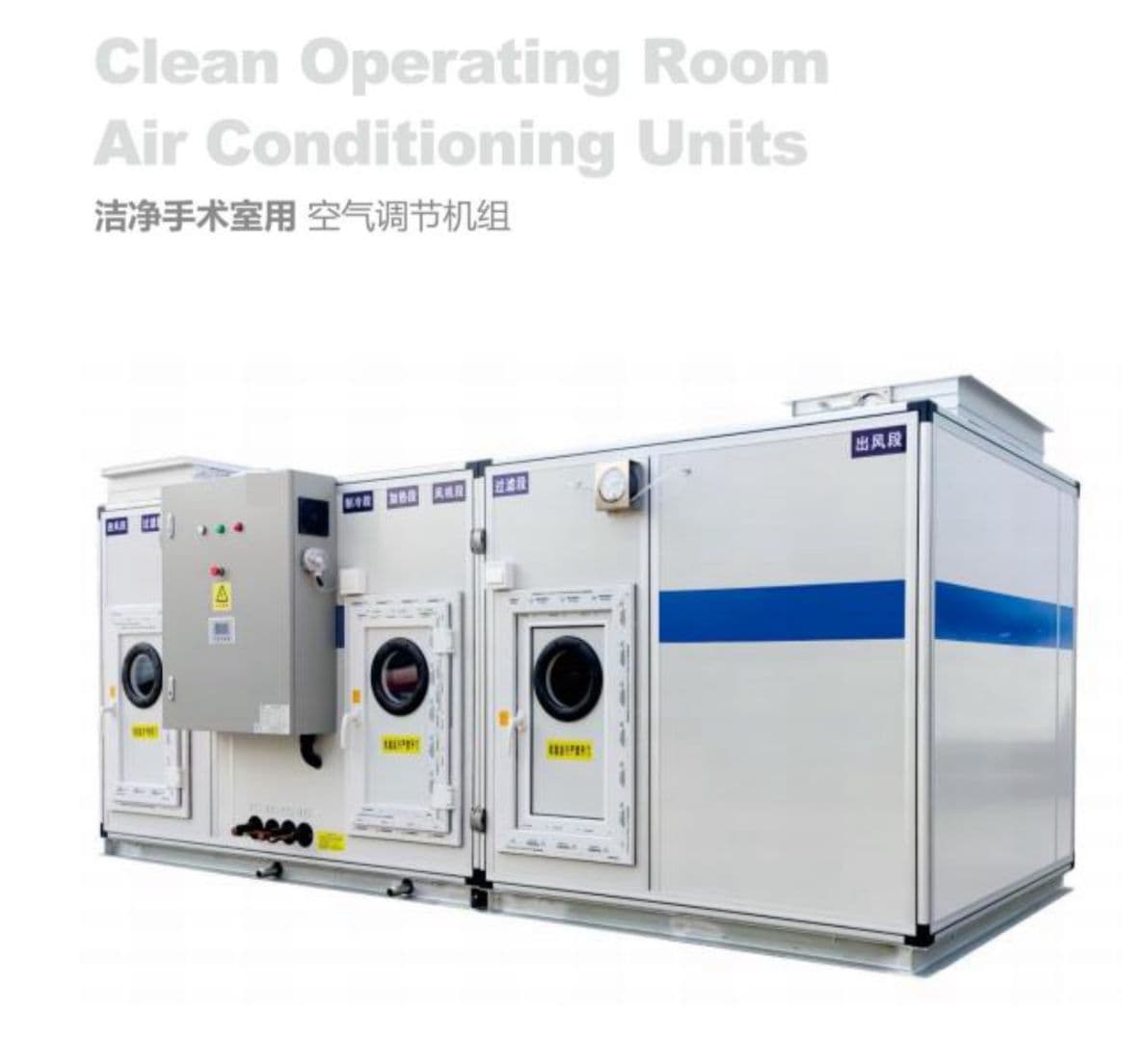

Cleanroom Air Handling Unit (AHU) / Clean Operating Room HVAC Unit
Clean Room HVAC Features
Comprehensive solutions for contamination-free environments
Lightweight EPS Panels
10-14 kg/m² sandwich panels with excellent thermal insulation (0.032 kcal/m·h·°C) for fast installation and superior energy efficiency.
Airtight Door Systems
Fully sealed stainless steel and aluminum doors with automatic bottom/top sealing and silicone rubber gaskets to maintain pressure differentials.
Temperature Control ±1-2°C
Achieve precise temperature stability of 23-24°C with minimal deviation for sensitive manufacturing processes.
Humidity Control ±5%
Maintain 45-55% relative humidity with tight control for electronics assembly and pharmaceutical production.
Fast Construction Cycle
Tongue & groove and corrugated interlocking panels enable quick installation with reduced labor costs and project timelines.
Class 10,000 Performance
Proven cleanroom performance in large-scale electronics manufacturing with complete contamination control.
Cleanroom System Components
Complete envelope solutions for airtight, controlled environments
EPS Sandwich Panels
Lightweight wall and ceiling panels with polystyrene core and pre-painted steel outer layers.
- •Thickness: 50-250 mm
- •Weight: 10-14 kg/m²
- •Widths: 950/1050/1150 mm
- •Tongue & groove interlocking
- •High stiffness (L/240 deformation)
Stainless Steel Doors
Fully airtight doors with SUS304 stainless steel construction and embedded silicone sealing.
- •Sizes: 900-1500 × 2100 mm
- •Frame: 1.2-1.5 mm steel/SUS304
- •Automatic sealing mechanism
- •Single/double/vision panel types
- •Wire drawing finish option
Aluminum Airtight Doors
Lightweight magnetic doors with sandblasted aluminum frames and antimicrobial coating.
- •Sizes: 900-1500 × 2100 mm
- •Magnetic bumper pad sealing
- •Sandblasted & oxidized frame
- •Paper/aluminum honeycomb core
- •Automatic up/down sealing
Technical Specifications
Industries & Applications
Pharmaceutical & Medical Production:
- ✓Tablet / Capsule Manufacturing
- ✓Injectable Drug Production
- ✓Vaccine Production Labs
- ✓IV Fluid Production
- ✓Sterile Packaging Rooms
- ✓Medical Device Assembly
Electronics Manufacturing:
- ✓TV Manufacturing Workshop
- ✓Mobile Phone Manufacturing
- ✓PCB Fabrication Workshop
- ✓Refrigerator & Compressor Assembly
Project Scale: Up to 20,000 sqm workshop areas with 1,000 sqm cleanroom zones
Complete System Integration
Air Handling Units
Custom AHUs with HEPA/ULPA filtration
Precision Cooling
Tight temperature & humidity control
Building Automation
Integrated BMS monitoring & control
Validation Services
Complete IQ/OQ/PQ documentation
Need a Clean Room HVAC System?
Our clean room specialists will design a validated solution meeting your exact requirements and regulatory standards.
Request Clean Room Quote
