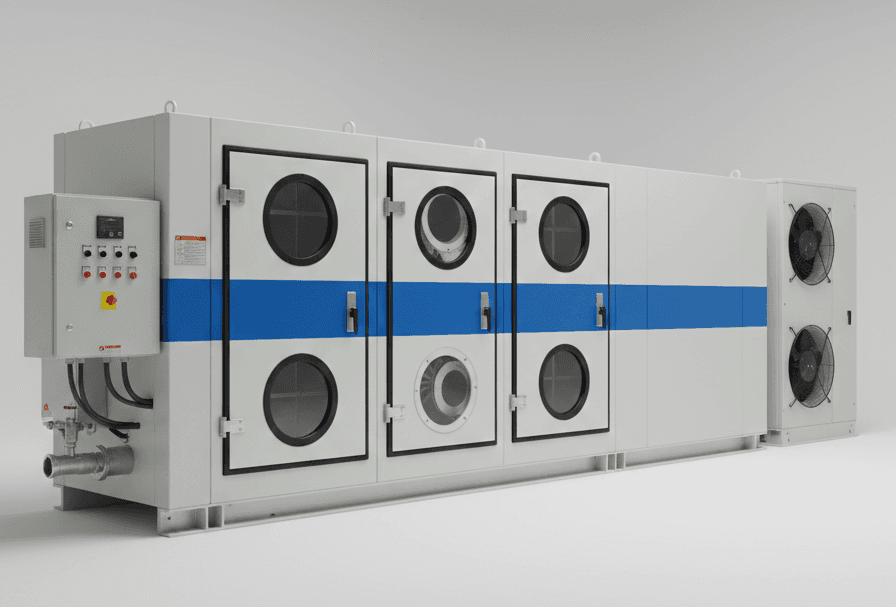

Clean Room AHU & FCU Systems
Pharmaceutical-grade Air Handling Units with European EN1886 standard construction. 30+ years of patented technology for cleanroom purification in medical, pharmaceutical, electronics, and biological applications.
Full-Function Purification Air Handling
Our Clean Room AHU systems perform complete air conditioning: cooling, heating, dehumidification, humidification, multi-stage filtration, and air purification — specifically engineered for pharmaceutical manufacturing, clean operating rooms, electronics fabrication, and biological laboratories.
These are not comfort AHUs. They are European-standard cleanroom purification units with double skin fire-resistant polyurethane panels (25-100mm), anti-cold bridge aluminum frames, and EN1886 compliance with 1000 Pa leakage testing.
Modular section design allows flexible configuration with H13 HEPA filtration, integrated humidification, chilled water/steam/DX coils, and intelligent DDC/PLC control — handling airflows from 2,000 to 200,000 m³/h with pharmaceutical-grade construction quality.
Industrial Cleanroom Engineering
EN1886 compliant construction with 30+ years patented technology
European Standard Double Skin Construction
Anti-cold bridge aluminum frame with double skin fire-resistant polyurethane insulation panels (25-100mm). EN1886 compliant, 1000 Pa leakage test rated.
30+ Years Patented Technology
Thermal bridge-free design with anti-condensation structure. Galvanized steel, color steel, or stainless steel panel options.
Multi-Stage Cleanroom Filtration
G2-G4 primary, F5-F9 bag filters, H10-H13 HEPA capability. Optional activated carbon and self-cleaning filters for pharmaceutical and electronics applications.
High-Efficiency Double Inlet Fans
Dynamically balanced centrifugal fans with steel frame assembly. Belt driven for easy maintenance. Low noise, high airflow reliability.
Advanced Coil Technology
Copper tube + aluminum fin heat exchangers with stainless steel option. Supports chilled water, steam heating, and DX refrigerant coils. Freeze protection with alarm.
Integrated Humidification Systems
Dry steam humidifier (stainless steel, precise control) or electrode humidifier for <100 kg/h capacity. Uniform distribution with horizontal/vertical mounting.
DDC/PLC Intelligent Control
Optional VFD cabinet, soft starter, or intelligent DDC/PLC control systems. IP55 Class F motors (380V/3P/50Hz) with >95% vibration damping.
Inspection & Maintenance Access
2000 Pa rated inspection windows with 24V waterproof service lights. Access doors with sealing for positive/negative pressure sections.
AHU Configuration Types for Cleanroom Applications
Four standard pressure arrangements for pharmaceutical, medical, and electronics facilities
Type A – Negative Pressure Configuration
Fan at end, most sections under negative pressure
- ✓High purification demand applications
- ✓Pharmaceutical manufacturing
- ✓Cleanroom operating rooms
- ✓Prevents contamination spread
Type B – Positive Pressure Coil Section
Fan before coil, coils in positive pressure
- ✓Protects coils from contamination
- ✓Medical facilities
- ✓Biological laboratories
- ✓Extended coil life
Type C – Fan in Middle (Balanced)
Balanced pressure design for wide application
- ✓Most common purification AC layout
- ✓Electronics manufacturing
- ✓Tobacco industry facilities
- ✓Optimal pressure control
Type D – Supply & Return Combined
Double fan system for standard applications
- ✓Non-strict purification processes
- ✓Commercial cleanrooms
- ✓Industrial air conditioning
- ✓Cost-effective solution
FCU Modular Components
Same industrial-grade modules used in both AHU and FCU construction
Coil Section (Water/DX)
Copper tube + aluminum fin with stainless steel option. Flanged connections, freeze protection, antifreeze alarm integration.
Ideal For:
Motor & Fan Assembly
IP55 Class F fully enclosed 3-phase motors with centrifugal fans. VFD compatible, >95% vibration damping, European pulleys.
Ideal For:
Multi-Stage Filtration
G2-G4 primary, F5-F9 medium efficiency bag filters, H10-H13 sub-HEPA. Activated carbon and self-cleaning options.
Ideal For:
Air Volume Control Dampers
Aluminum opposed blade dampers with low torque ABS gears. Manual or actuator operated with rubber edge sealing.
Ideal For:
FLHS Series Cleanroom AHU Models
Complete air conditioning with cooling, heating, dehumidification, humidification, and filtration
| Model | Airflow | Cooling | Heating | Humidifying | Fan Power |
|---|---|---|---|---|---|
| FLHS-7HP | 3,500 m³/h | 18 kW | 9 kW | 6 kg/h | 2.2 kW |
| FLHS-10HP | 5,000 m³/h | 28 kW | 16 kW | 10 kg/h | 3 kW |
| FLHS-15HP | 8,000 m³/h | 36 kW | 21 kW | 12 kg/h | 4 kW |
| FLHS-20HP | 10,000 m³/h | 53 kW | 27 kW | 16 kg/h | 5.5 kW |
Operating Conditions: 18–26°C, 55% ±5% RH | Refrigerant: R22 | Voltage: 380V 3-Phase
Technical Specifications
European Standard Clean Room Equipment — Pharmaceutical Grade AHU Systems
Cleanroom & Purification Applications
Pharmaceutical Manufacturing
Clean Operating Rooms
Electronics Fabrication
Biological Laboratories
Tobacco Industry
Medical Facilities
Research Institutions
Industrial Cleanrooms
Need Cleanroom AHU Systems?
Our engineers will design pharmaceutical-grade AHU solutions for your cleanroom, medical facility, or electronics manufacturing application.
Request Technical Consultation
